dgm20-linux

Control the Maono DGM20 USB microphone on Linux. Maono Link only runs on Windows and macOS; this covers the same settings with a local web page and a command-line tool.

• Noise cancellation on/off and strength
• Vocal enhancement
• Hear yourself (headphone monitoring)
• Mute, kept in sync with the mic's touch pad
• RGB ring brightness
• Factory reset

Pure Python, no dependencies. Nothing leaves your machine: the page is served from your own computer and loads no external fonts or scripts.

Unofficial. Not affiliated with or endorsed by Maono.

Supported hardware

Model	USB ID	Status
DGM20	352f:0105	Supported, tested on firmware 2.1.2
DGM20 (newer revision)	352f:0112	Not yet
DGM20G, DGM20W	352f:0113, 352f:041a-041d	Not yet

Find your mic's ID with lsusb | grep -i maono. If you have one of the unsupported models and want to help, open an issue with that output.

Install

You need Python 3.9 or newer with venv (Debian and Ubuntu: sudo apt install python3-venv).

git clone https://git.reiners.io/ReinersCloudConsulting/dgn20-linux.git
cd dgn20-linux
./install.sh

Then unplug the mic and plug it back in once.

The installer:

1. puts the program in its own virtualenv under ~/.local/share/dgm20-linux, with the commands dgm20ctl and dgm20-web linked into ~/.local/bin, and
2. asks for sudo once to add a udev rule (/etc/udev/rules.d/70-maono-dgm20.rules) that lets you use the mic's control channel without root.

Run it as your normal user, not with sudo.

Options

Option	What it does
--service	Runs the control page in the background now and every time you log in (systemd user service).
--lan	Lets other devices on your network open the page too. Opens the port in firewalld or ufw for your local subnet only. Implies --service.
--port N	Uses a different port (default 8720).
--group NAME	Group allowed to use the mic from ssh sessions. Default: the first of plugdev, wheel, sudo that you belong to. Desktop logins always have access.
--no-udev	Skips the udev rule.
--dry-run	Prints every change instead of making it.

--lan has no login. Anyone on your network can change your mic settings, so only use it on a network you trust. If you run a firewall other than firewalld or ufw, the installer tells you what to allow.

Uninstall

./uninstall.sh

This removes everything the installer added: the service, firewall rule, udev rule and program files. The installer keeps a record of what it changed, so only those changes are undone. Your mic keeps its current settings.

Use

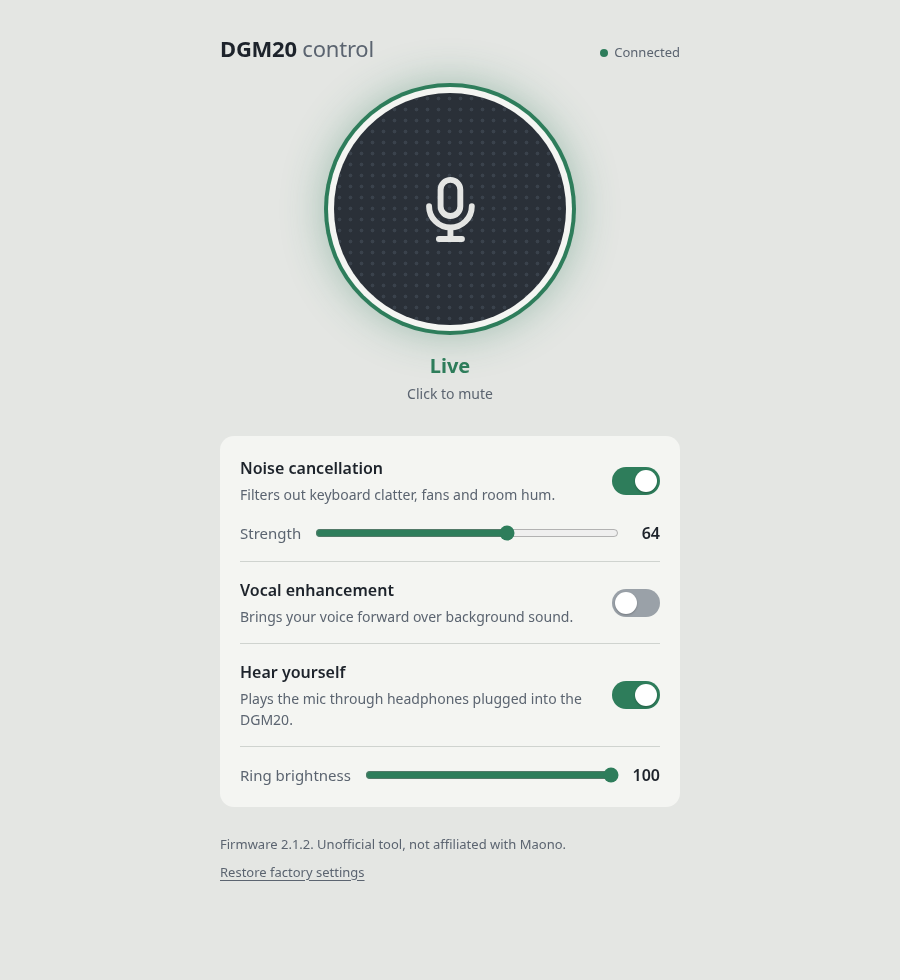

dgm20-web --open             # open the control page (http://localhost:8720)
dgm20ctl                     # show current settings
dgm20ctl set nc on nc-level 80
dgm20ctl set monitor off enhance on brightness 40
dgm20ctl watch               # print changes made on the mic itself
dgm20ctl info                # model and firmware
dgm20ctl factory-reset --yes

Setting	Values
mute	on, off
nc	on, off: noise cancellation
nc-level	0-100: noise cancellation strength
enhance	on, off: vocal enhancement
monitor	on, off: hear yourself in headphones plugged into the mic
brightness	0-100: RGB ring

Settings are stored on the mic, so they stay the same after a replug and on other computers.

Input gain and headphone volume are standard USB audio controls. Set them in your desktop's sound settings, pavucontrol or alsamixer.

Using the page from another computer without opening a port

If the mic is plugged into a machine you reach over ssh, forward the port instead of using --lan:

ssh -L 8720:localhost:8720 that-machine

Then open http://localhost:8720 on your own computer.

Troubleshooting

"no permission to open /dev/hidrawN": the udev rule isn't applied yet. Unplug and replug the mic. Over ssh, make sure you're in the group the installer printed (id -nG). If you were just added to that group, log in again.

"DGM20 (352f:0105) not found": check lsusb | grep -i maono. A different USB ID means a model that isn't supported yet (see above).

The page says "Mic not found": plug the mic in. The page reconnects by itself.

dgm20-web: cannot listen on 127.0.0.1:8720: it's already running, for example as the service. Open http://localhost:8720, or pick another port with --port.

Commands not found after installing: ~/.local/bin isn't on your PATH. Add export PATH="$HOME/.local/bin:$PATH" to your shell profile.

Service stops when you log out: run sudo loginctl enable-linger $USER.

How it works

The mic has a vendor HID channel next to its audio interfaces. The settings were found by reading Maono Link's DGM20 plugin and then checked against a real mic. PROTOCOL.md documents the packet format and register map. dgm20ctl raw get|set|dump gives direct register access for exploring.

Development

PYTHONPATH=src python3 -m unittest discover -s tests
PYTHONPATH=src python3 -m dgm20.web

License

MIT
